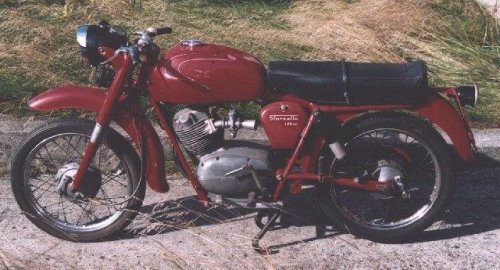

Introduced at a time when the motorcycle industry found itself in the grip of a minor crisis, the Stornello 125 was designed with maximum cheapness of construction in mind: parallel overhead valves, wet sump, pressure die-cast crankcase, etc. Given the healthy sales, a new and more powerful engine with inclined valves was built and fitted to various racers: the Sport, the Scrambier, and the Regolanta'.

At the end of 1967 the 160 version was introduced; in early 1970 the Stornello was given a 5-speed gearbox and new styling. It was produced from 1960 to 1975.

Model / year

Stornello Turismo / 1960-1968

Engine

4-stroke inclined single 52x58 mm /123.1 cc

Compression ratio

8:1

gutput

7 hp at 7200 rpm

Cylinder head

light alloy with valves in oil-bath

Cylinder

light alloy with pressed-in liner

Valve arrangement

parallel overhead

Valve gear

push rod and rocker arm

Ignition

flywheel magneto

Carburettor

Dell'Orto ME 18 BS

Lubrication

wet sump and gear driven pressure pump

Clutch

wet multiplate type

Gearbox

foot-change 4-speed constant-mesh

Transmission

primary, gear driven; final drive, chain

Frame

tubular duplex cradle

Wheelbase

1250 mm

Front suspension

teledraulic fork

Rear suspension

swinging arm with teledraulic dampers

Wheels

spoked with 17 x 2 1/4 rims

Tyres

front: ribbed 2.5O~17"; rear, studded 2.75-17" R

Brakes

expansion type: front manual, rear pedal

Weight

85 kgs

Max speed

approx. 100 km/h

Normal consumption

(Cuna stds.) 2.3 litres per 100 kms

Fuel tank capacity

12.5 litres

Lubricant capacity

1.9 litres
